LM1

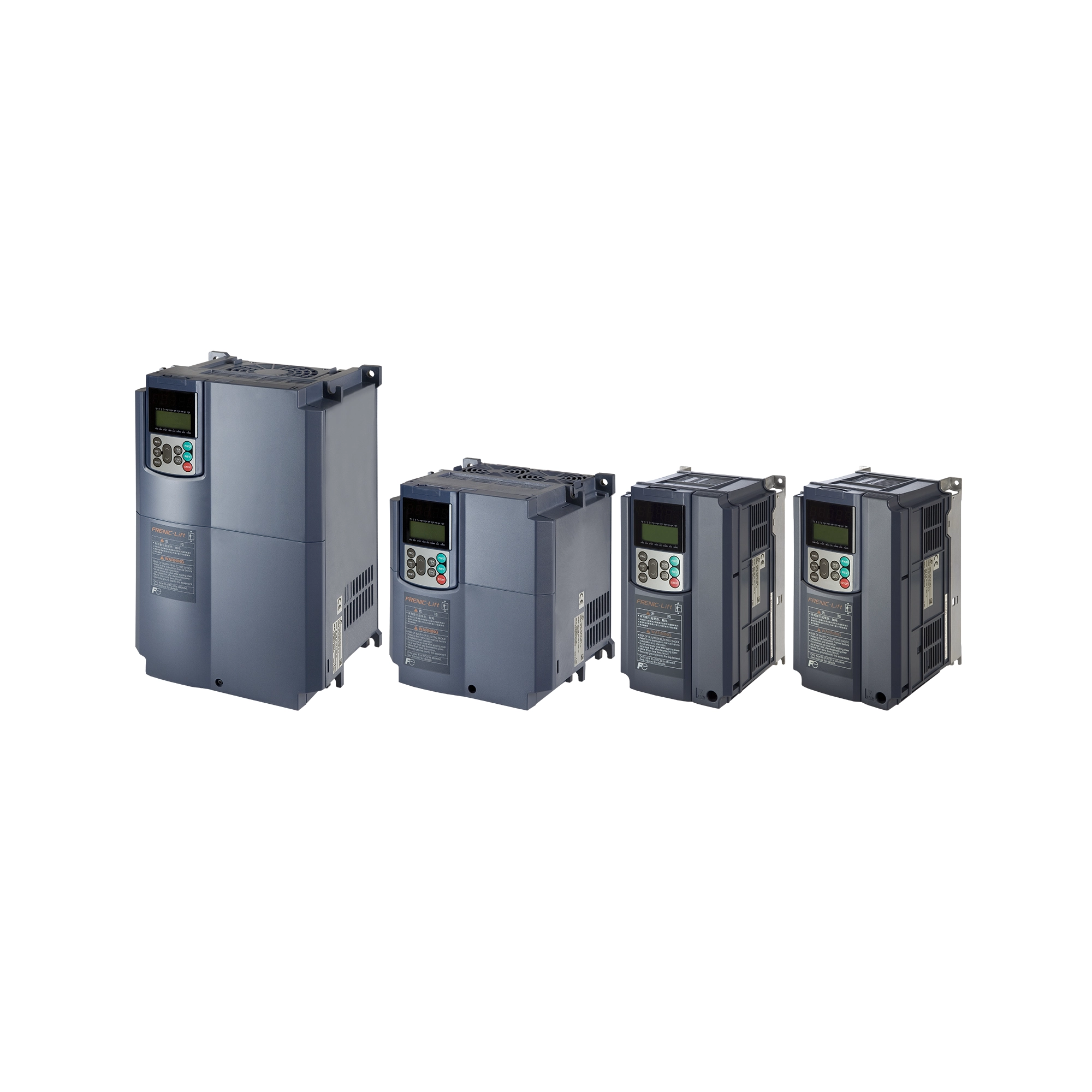

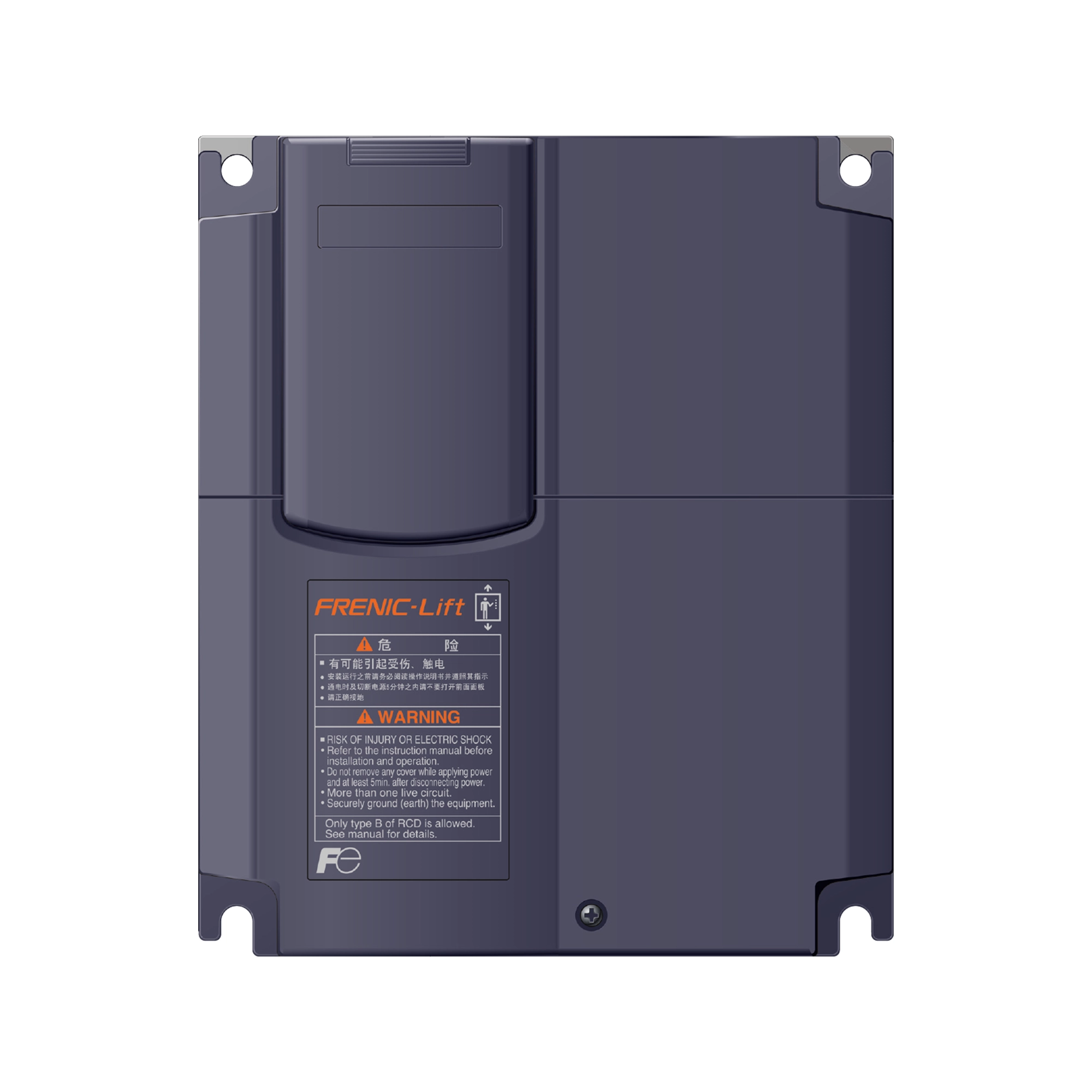

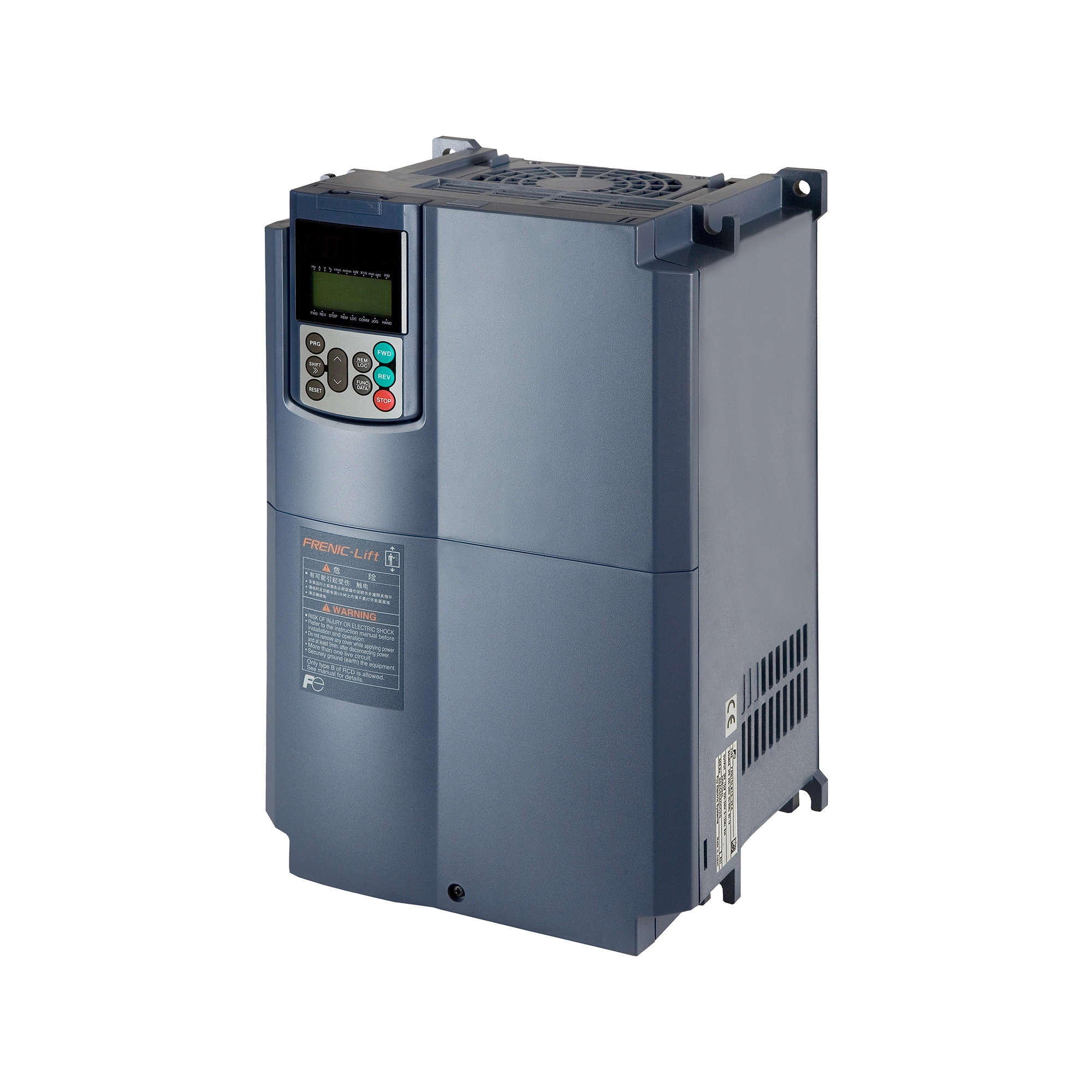

FRENIC-Lift- LM1

Over the years, Fuji Electric has built up a well-founded expertise in inverters for elevator applications. With this focus, we have developed a reliable inverter, specialized for lift applications with all the related requirements: FRENIC-Lift. With the FRENIC-Lift series, Fuji Electric is well established in the elevator industry and well-prepared for the European market. Like all Fuji Electric inverters, FRENIC-Lift offers a great variety and many possibilities – and of course Japanese top quality.

Features

  • User-friendly
  • Practically maintenance-free: durable design
  • Speed control accuracy: + 0.01 %
  • Bandwidth of current control loop: 500 Hz
  • Powerful: 200 % of rated current for 10 s
  • 4.0 kW to 45 kW (400 V power supply, 3 phases)
  • 5.5 kW to 22 kW (200 V power supply, 3 phases)
  • 2.2 kW (200 V power supply, 1 phase)
  • TP-G1-ELS (multifunctional keypad, 12 languages available)
  • Specially optimized for lift applications
Offer Form
Downloads

Option cards

    • SinCos/SinCos encoder interface (OPC-LM1-PR)
    • PG (encoder) interface 5V TTL line driver (OPC-LM1-IL)
    • SinCos/EnDat 2.1 encoder interface (OPC-LM1-PS1)
    • Gray Code/switching signals 5 V TTL line driver encoder interface (OPC-LM1-PP
    • Pulse output divider card (OPC-LM1-ID)

    Downloads

    Lift LM1 Catalog
    Selection Guide D&A
    Green Procurement Guidelines
    D&A REACH Statement
    Self declaration of Reach, RoHS, TCSA an all chemical requirements
    EU Declaration of Conformity Lift (FRN-LM1)
    Lift LM2A Instruction Manual
    Lift LM1 Starting Guide
    Lift LM1S Instruction Manual
    Lift LM1S Instruction Manual - Supplementary for conformity with standards
